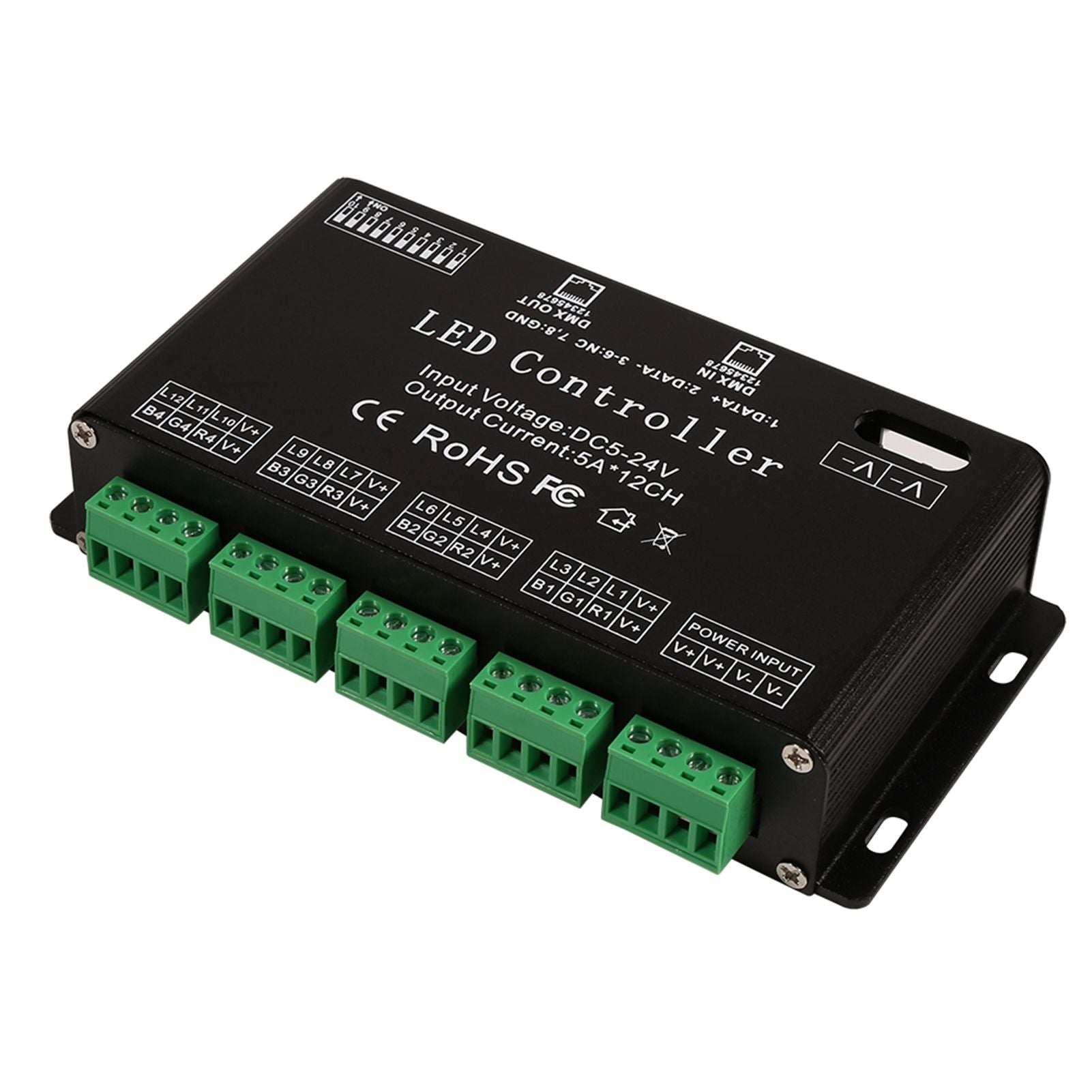

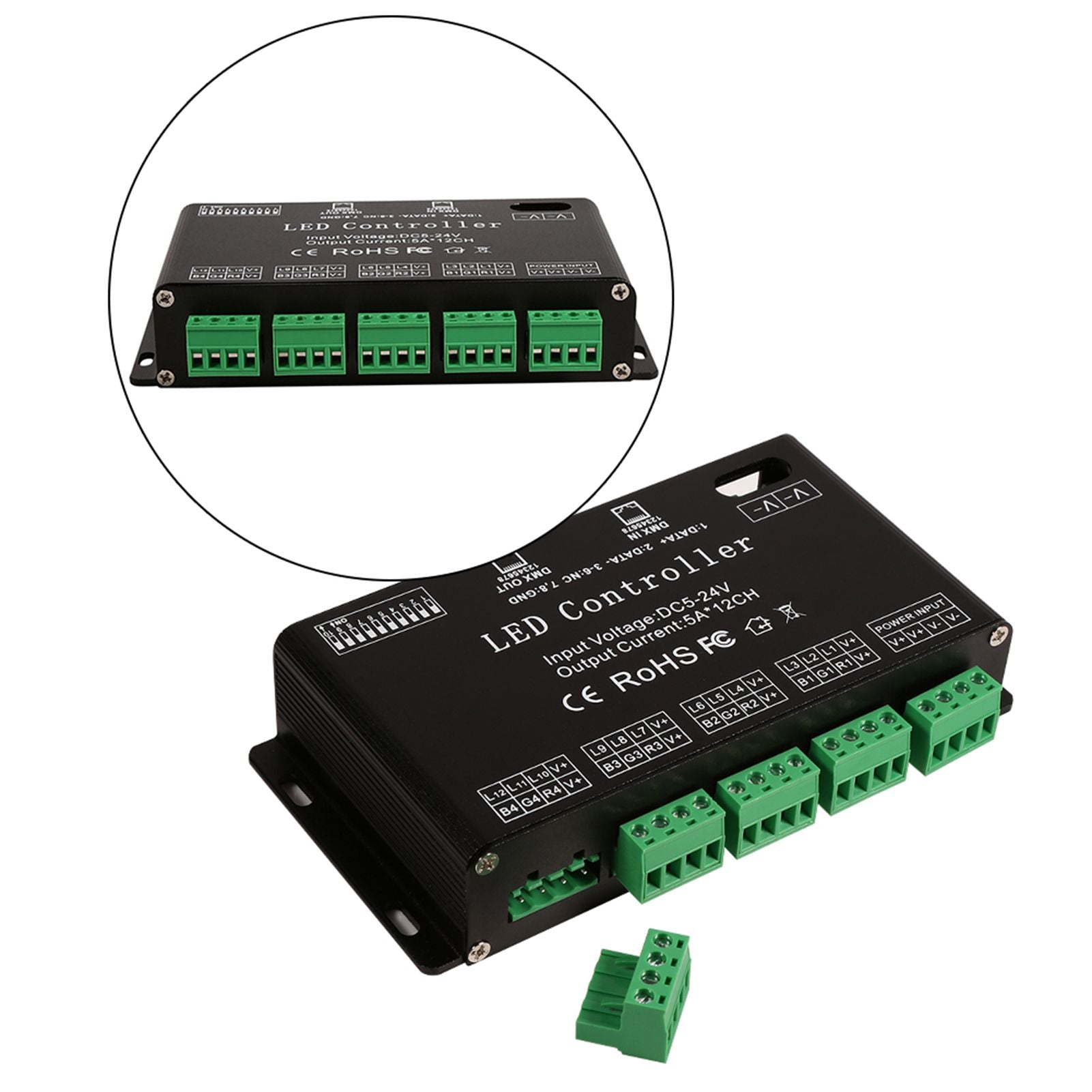

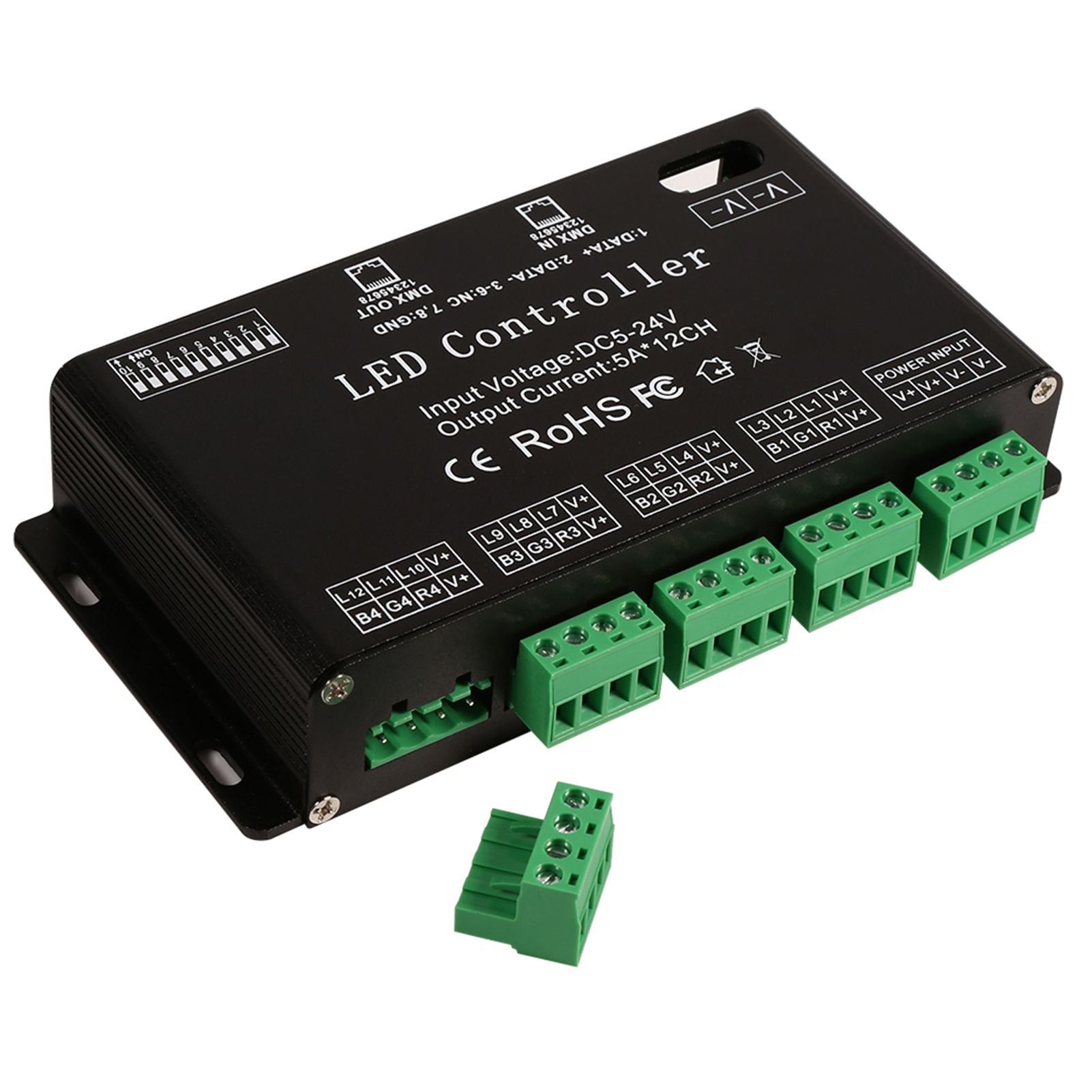

DC5V-24V 6 Channel RGB LED Controller DMX Decoder Driver Strip Module Black Color

1、There are 12 output channels, can connect with single or RGB lamps
2、0-100% dimming output, each channel 256 gray levels
3、International standard DMX512 input protocol, address code set by DIP switches
4、Wide voltage DC input DC5V-DC24V
5、Each occupied by 12 DMX address
Description:
This item takes advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 12 output channels, each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.
Features:

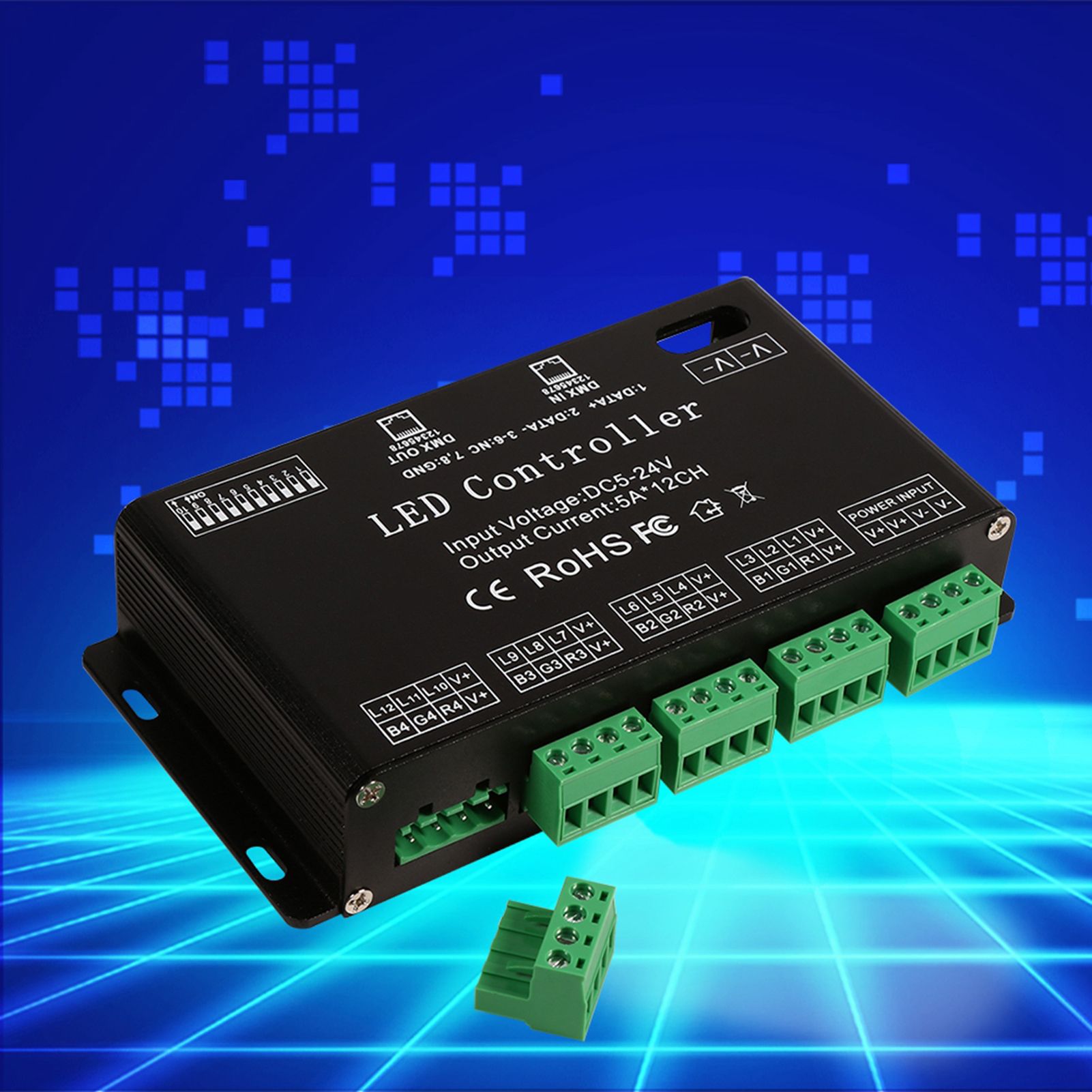

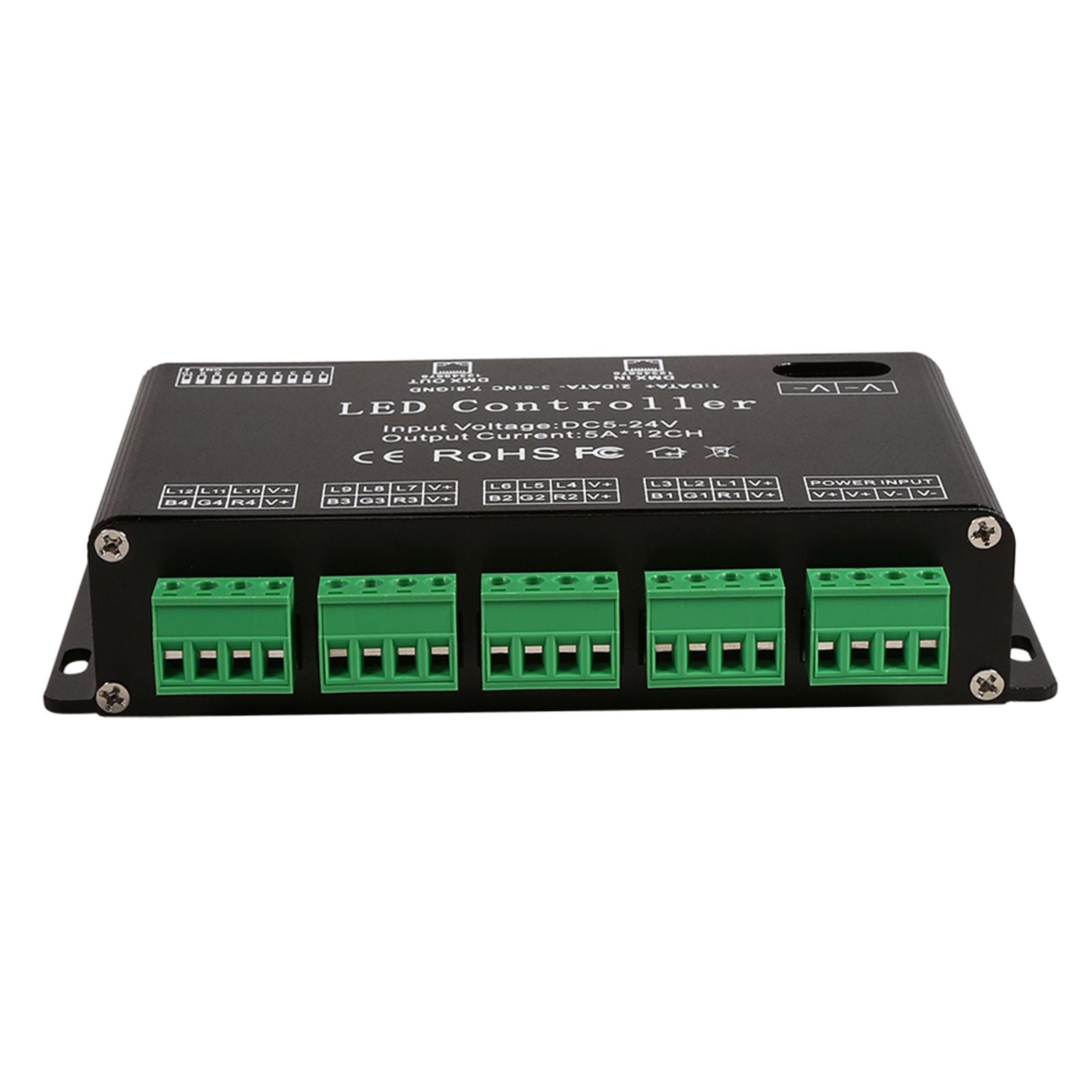

There are 12 output channels, can connect with single or RGB lamps.
0-100% dimming output, each channel 256 gray levels.
International standard DMX512 input protocol, address code set by DIP switches.
Wide voltage DC input DC5V-DC24V.
Each occupied by 12 DMX address.
Specification:
Condition: 100% Brand New
Color: Black

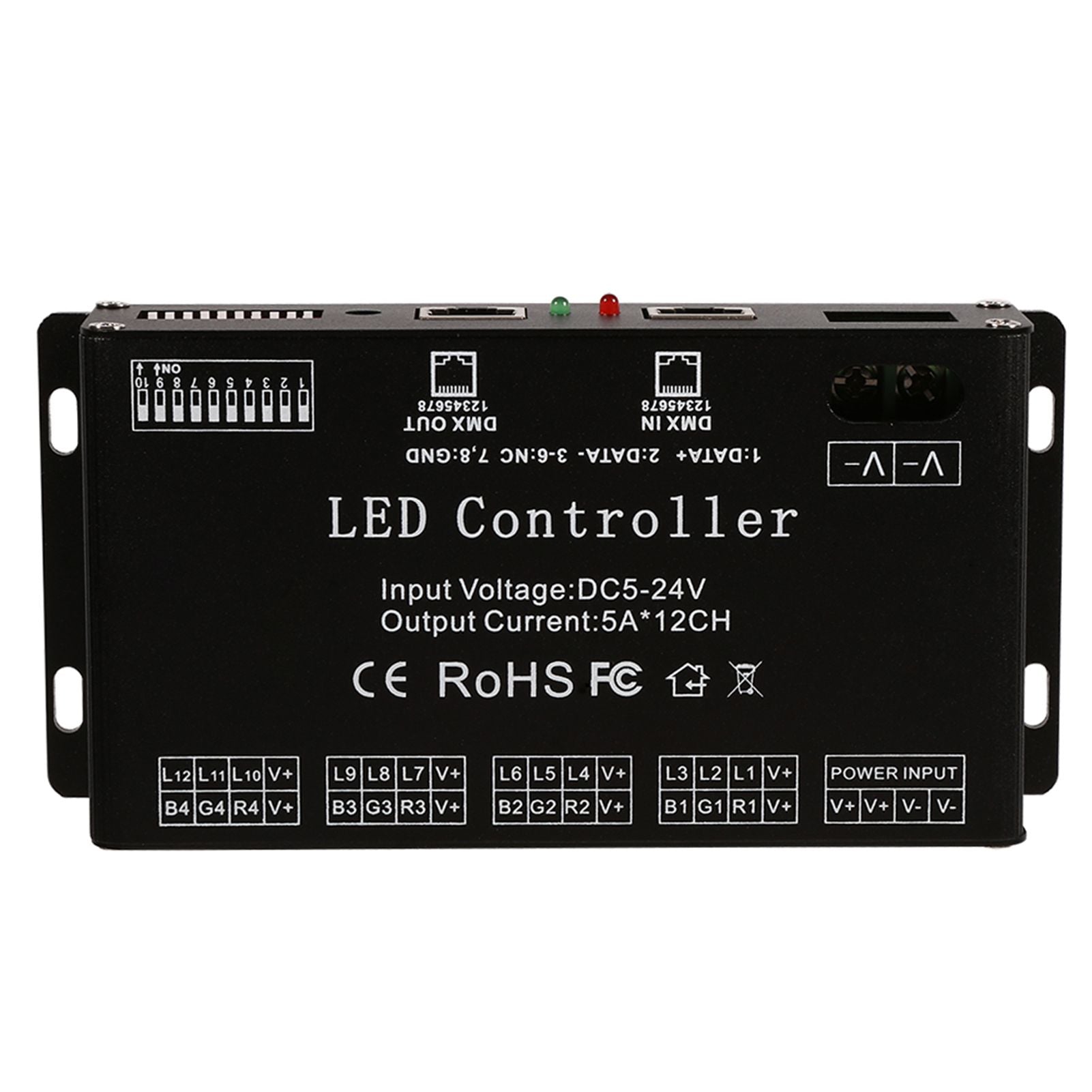

Input Power: DC5V-24V
Maximum Power Load: 300W(5V), 720W(12V),1440W(24V)
Output Grey Level: 256
Input Signal: DMX512/1990
Output Signal: 12 Channels Constant PWM
Output DMX: 12 Channels

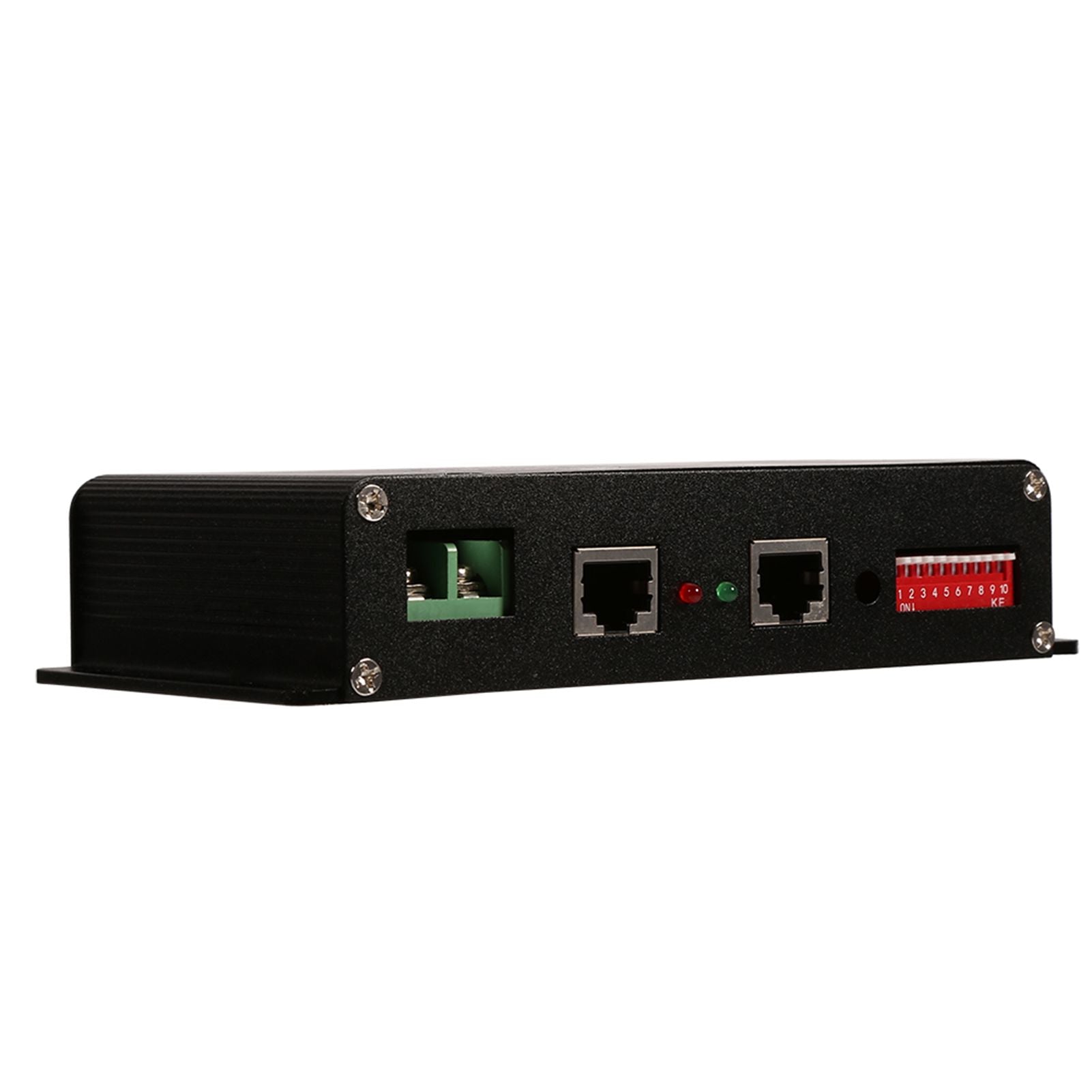

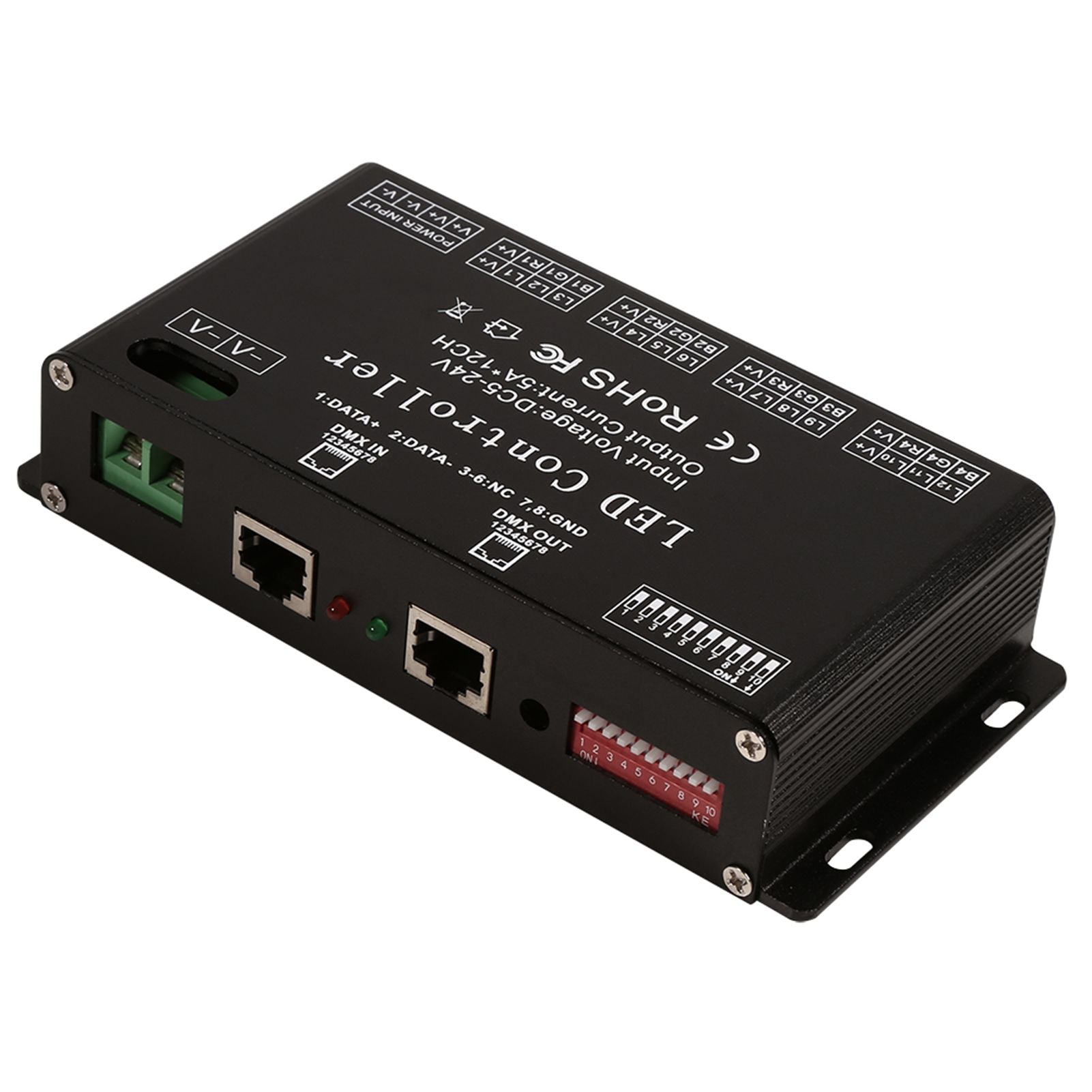

DMX512 Socket: Standard RJ45

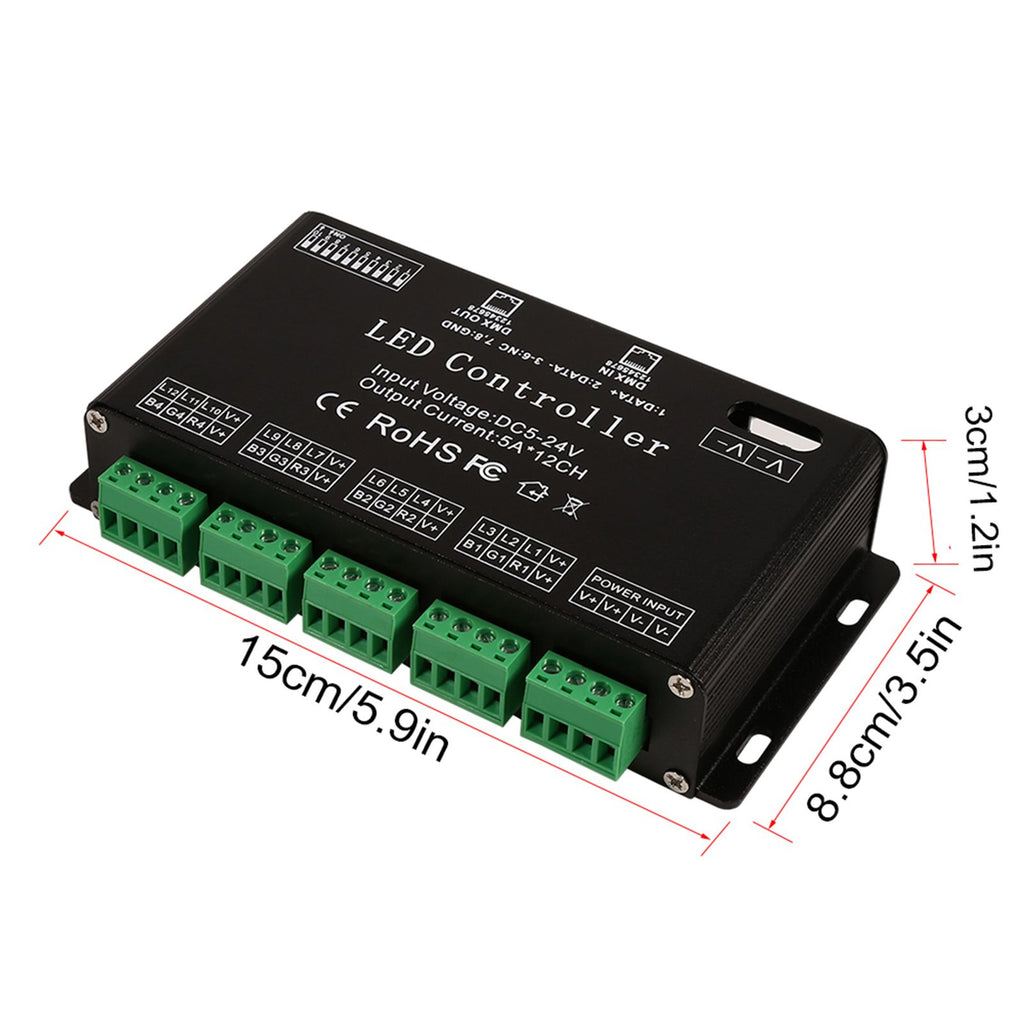

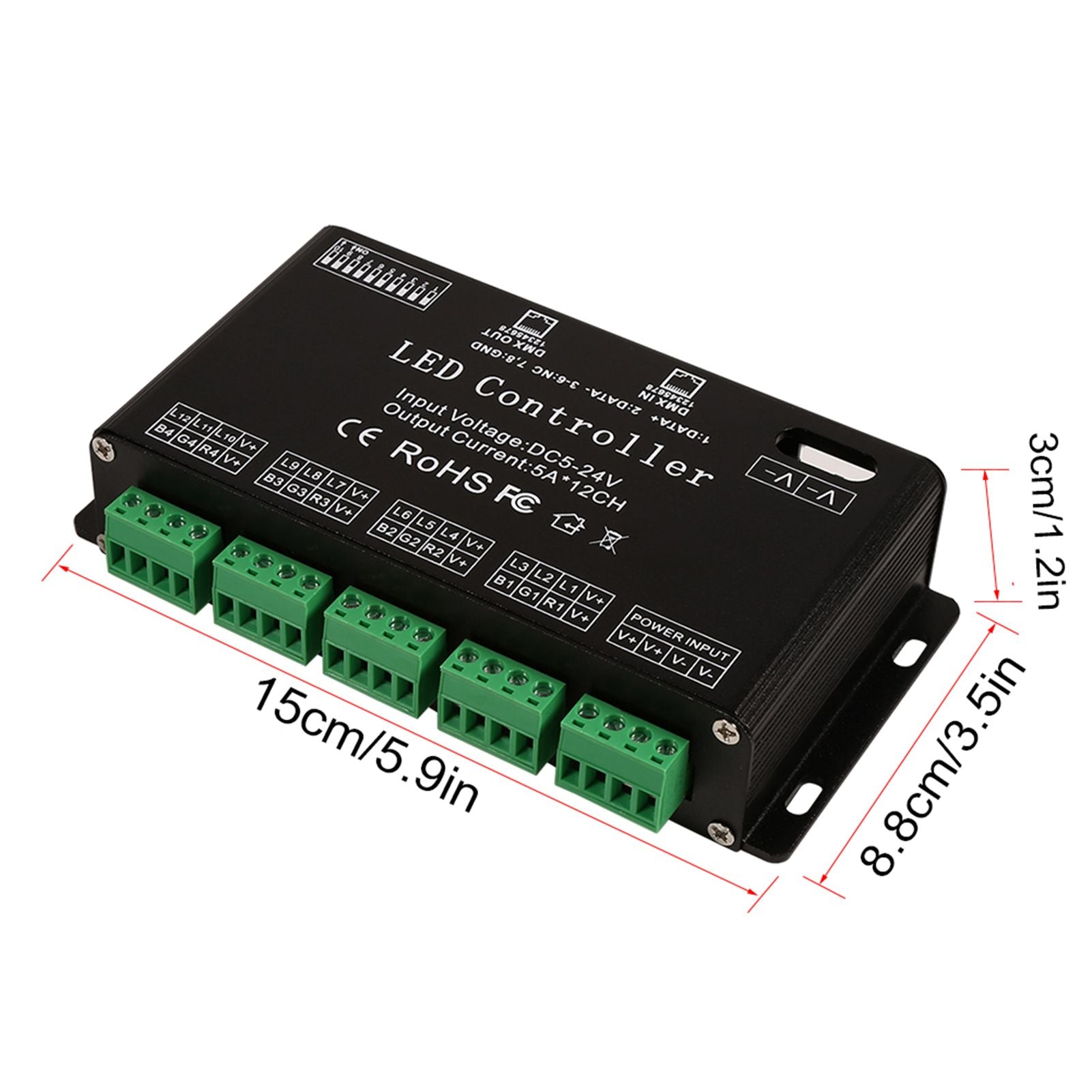

Product Size: Approx. 15 x 8.8 x 3cm / 5.9 x 3.5 x 1.2inch
Product Weight: Approx. 370g

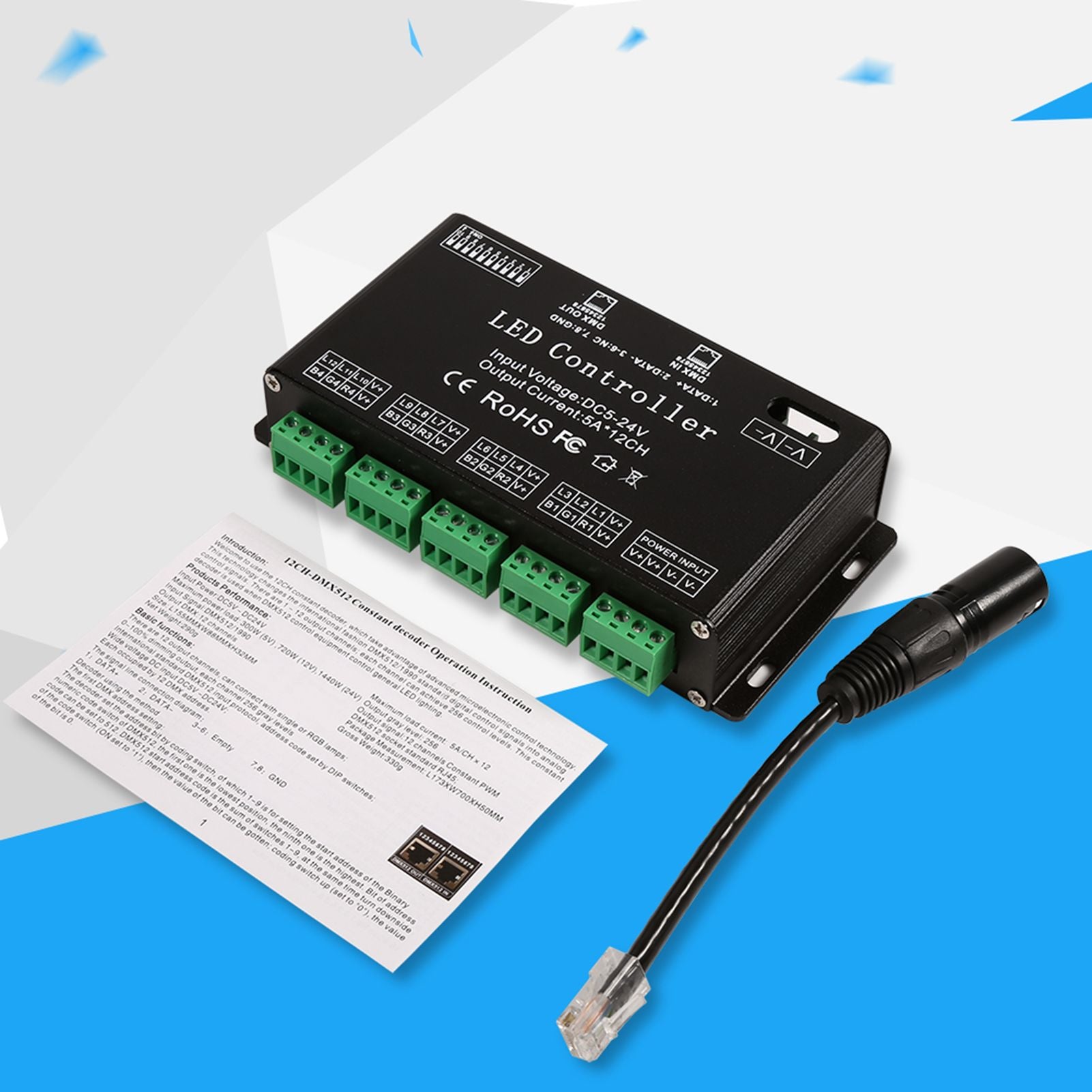

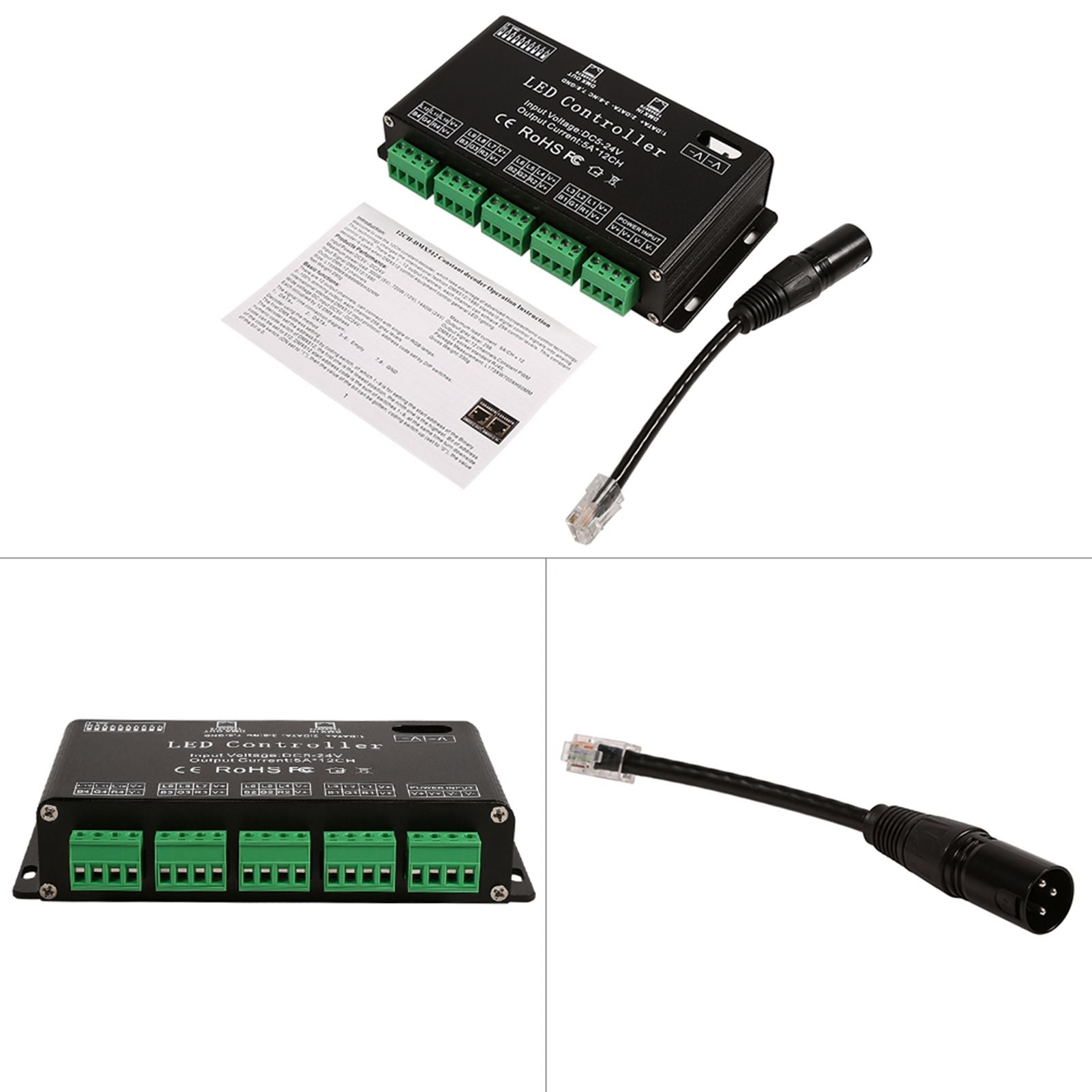

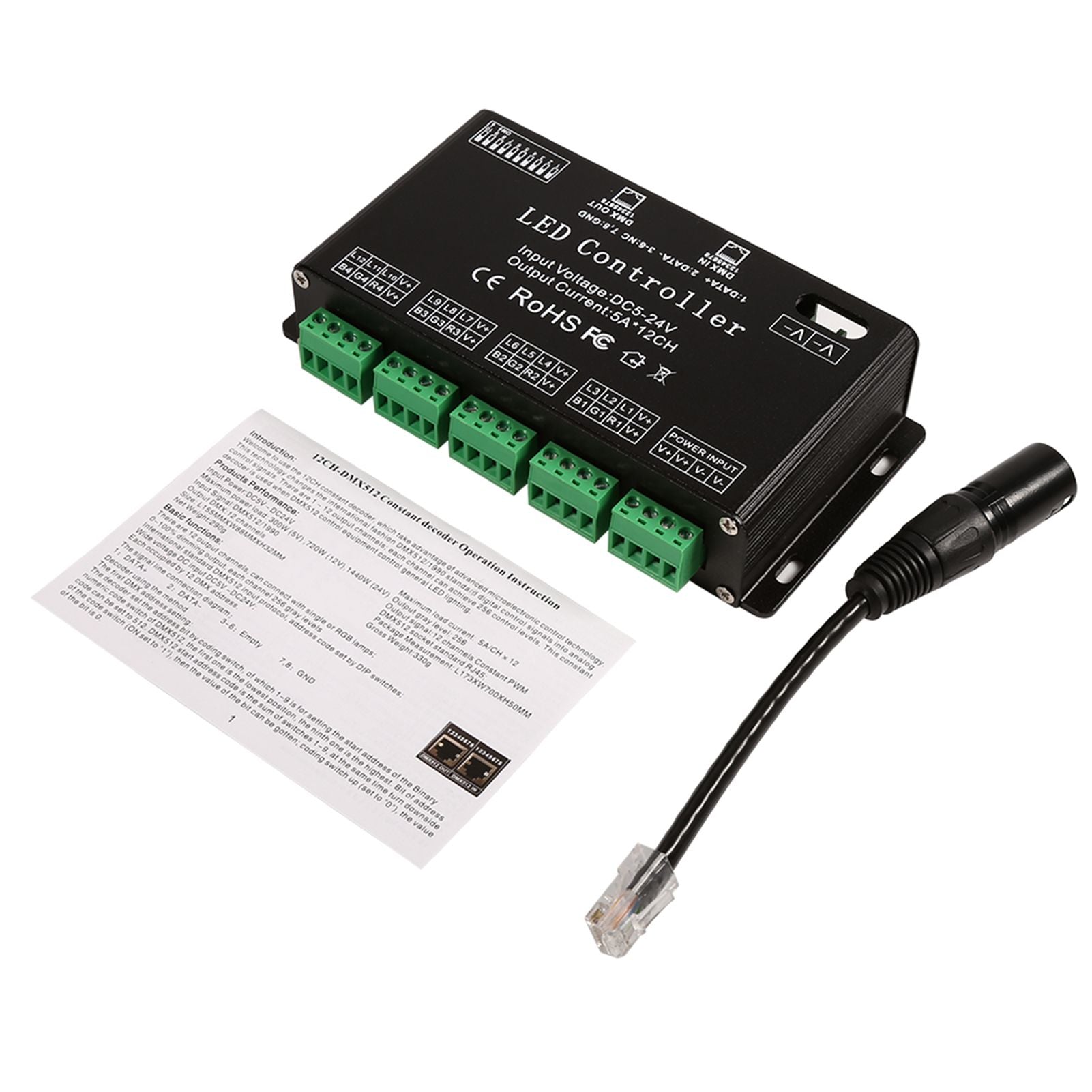

Package Included:
1 x 12 Channel DMX 512 LED Decoder
1 x User Manual

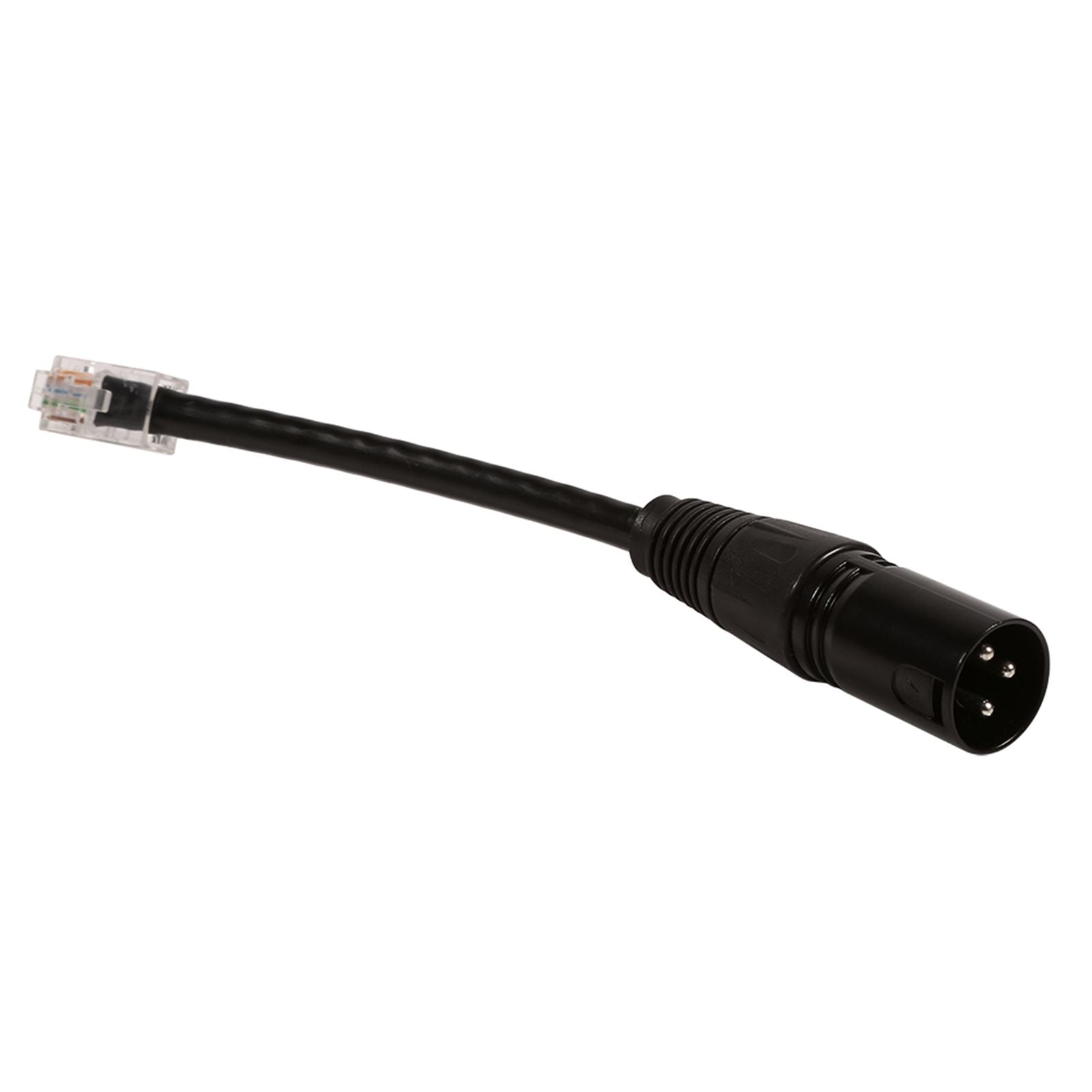

1 x DMX Cable
Installation Notes:
1. This kind of controller works only under DC5V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.
2. The UTP wire is connected hand in hand to make the cable, when two or more controller connected.
3. The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.
4. Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.
5. Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely.
